一、Product application

This machine is specially designed and manufactured for metal powder injection molding parts, and is suitable for the crushing and recycling of metal powder injection molding products, defective products and plastic head materials.
This model is suitable for the crushing and recycling of metal MIM injection parts. Iron, stainless steel, nickel, copper and other metal powders, and the proportion is generally 85% or more.
Metal powder injection molding is a method of plastic injection molding to produce high hardness alloy products and ceramic products. We know that injection molding will have nozzle materials and defective products, but compared with plastic injection molding, the defective rate is higher, and the cost of alloy ceramic raw materials is high.
Aiming at the particularity of MIM materials, Gu'an is the first in China to launch a metal powder injection molding machine. This series can crush: stainless steel powder injection molding parts, iron powder injection molding parts, MIM injection molding parts, ceramic injection molding parts and other metallurgical workpieces

Metal powder injection moulding parts crusher, MIM crusher

二、Characteristics of Metal Powders:

1. Add about 85% iron powder or stainless steel powder to the plastic granules, injection molding.

2. The product after injection molding has high hardness and strong wear resistance

3. The nozzles, defective products, and test rubber head materials produced by injection molding can be crushed and then recycled

Requirements for pulverizers for metal powder injection parts:

1. Because the product contains a large amount of metal powder, the product has high hardness and cannot be pulverized by ordinary pulverizers.
2. Because the product contains a large amount of metal powder, the requirements for the pulverizer tool are very high, which must be wear-resistant and impact-resistant.
3. Most of the metallurgical injection molding parts have very high requirements, so the products cannot be contaminated during the crushing and recycling process, and the sealing performance of the crusher is high.
4. Since the product contains a large amount of metal powder, metal powder will be generated during the crushing process. These powders must have a dedicated powder discharge device, otherwise it will cause serious wear and tear to the running parts of the crusher.

Metal powder injection moulding parts crusher, MIM crusher

三、Product advantages：

1. Strong wear resistance of the tool: imported alloy steel tool, no gaps in the process of cutting metal parts, durable wear resistance;
2. Effort-saving design: special cutting angle, crushing is labor-saving, and metal MIM products can be crushed with low power;
3. Strong sealing: The raw material for metal powder injection molding is 0.1-10μm particle size. All parts of this pulverizer are designed with high sealing to prevent metal powder from entering the machine.
4. Mechanical wear during operation; wear resistance of the cavity: Since the metal products are made of high-hardness alloy powder, the materials in the contact space between the pulverizer and the product have high wear resistance.
5. Automatic powder discharge design: It can prevent dust from entering the bearing and cause bearing damage.
6. External sealing: The feeding port and receiving box of the crusher are designed with baffles, and the external good sealing performance can effectively prevent the leakage of metal dust and keep the working environment relatively clean.

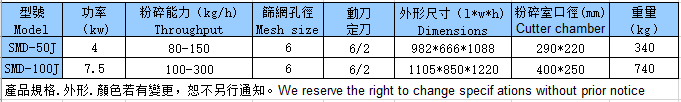

四、technical parameter

The special crusher for metal powder injection molding parts is designed and manufactured for the metallurgical injection molding industry. It has formed a good use of beer in this industry. And in a large number of post-use improvements, the model has been improved step by step, making it more suitable for Customer demand.

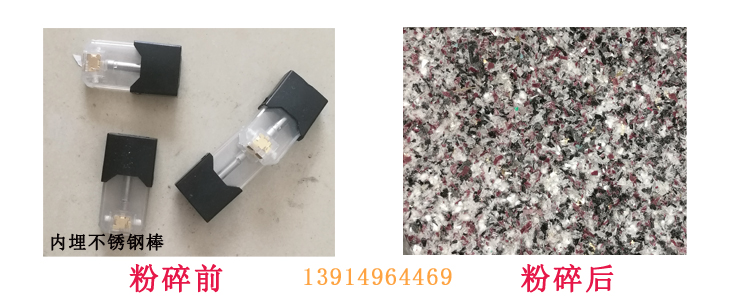

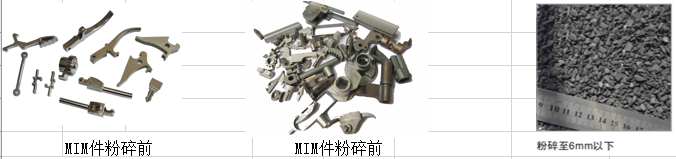

五、picture display
