一、product referral

Energy-saving dehumidifier | Heatless dehumidifier | Energy-saving and environmentally friendly dehumidifiers are designed with energy saving and emission reduction as the design concept, the design system is more simplified, and the power consumption of the system is greatly saved;

This series integrates three functions of plastic dehumidification, drying and conveying. It is suitable for drying engineering plastics that have certain requirements on moisture content, such as ABS.PC.PE.PVC.PU, etc.

This model uses a heatless regeneration device to provide stable and low dew point dry air, making it easier to dry raw materials.

二、Product Features

1. Using a heatless regenerative air dryer, the dew point can reach the temperature-removing air with a low dew point below -20°C.
2. No need for cooling water, easy to move.
3. High efficiency, low power consumption, 50% energy saving than traditional type.
4. The structure is compact and does not occupy space, especially suitable for dust-free workshops.
5. The thermal insulation drying barrel adopts the design of the lower blowing pipe to reduce the loss of heat energy.
6. All stainless steel feeding system.
7. Optional PLC touch man-machine interface, centralized and convenient operation.
8. Optional dew point meter monitoring.

Energy-saving dehumidifier | Heatless dehumidifier | Energy-saving and environmentally friendly dehumidifier

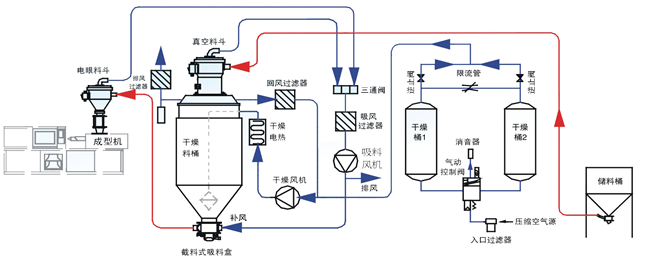

三、Working principle diagram

Energy-saving dehumidifier | Heatless dehumidifier | Energy-saving and environmentally friendly dehumidifier

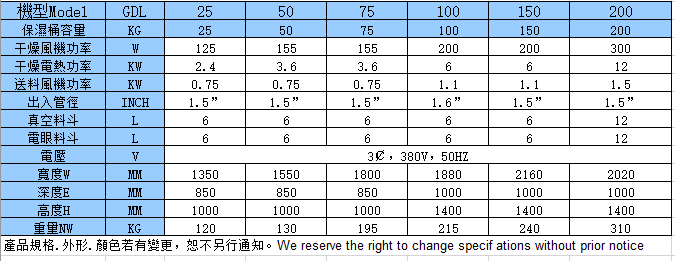

四、Product parameters
