1. Application of the product
The desktop hydraulic rubber cutting machine produced by Gu'an Machinery, the nitrile rubber cutting machine is one of the very important mechanical equipments in the rubber crushing production line, mainly used for the cutting and cutting of rubber.
Its function is to cut natural rubber or synthetic rubber blocks (packs) into smaller blocks that are easy to process. It is convenient for crushing or plasticizing process of rubber mixer.

rubber dicing machine, rubber crushing dicing machine, rubber block dicing machine
Second, the product features:
The equipment is mainly composed of rubber cutting knife, frame, working oil cylinder, raw rubber roller table and hydraulic system. When working, place the raw rubber block under the rubber cutting knife, and use the system system of the working cylinder to push down the rubber knife to cut the rubber block.

1. The cutter enters and exits the material port, and the protective net is installed.
2. With manual and automatic switching
3. Nylon or soft lead pads are installed on the base under the glue cutter to protect the blade of the glue cutter
4. The upper and lower limit switches are installed on the frame to change the movement direction of the rubber cutter and also protect the piston cylinder cover.
5. The feeding table adopts the rolling method, and the feeding is light
6. The overflow valve in the hydraulic system, when the resistance is too large and the operation is abnormal, the overflow valve automatically unloads
7. The hydraulic system of the new machine should be cleaned after 200 hours of use, and the new oil should be replaced
8. The tool is easy to disassemble and assemble, and can be used for grinding and repairing
9. Optional explosion-proof safety standard production

rubber dicing machine, rubber crushing dicing machine, rubber block dicing machine

三. Working principle:

The motor drives the oil pump through the coupling. When the "down" button is pressed, the coil on the right side of the solenoid valve is energized, and the hydraulic oil enters the upper chamber of the working cylinder through the reversing valve. At this time, the rubber cutter is driven by the cylinder piston rod. The rails on the rack are lowered to cut glue. The frame is equipped with upper and lower limit switches. When the rubber cutting action is completed, touch the lower limit switch to make the coil on the left side of the solenoid valve energized, change the direction of the hydraulic oil, and make the rubber cutting knife rise. When the rubber cutting knife rises and touches the upper limit switch, the pressure oil returns to the oil tank through the reversing valve, and the rubber cutting knife stops moving.

四、technical parameter

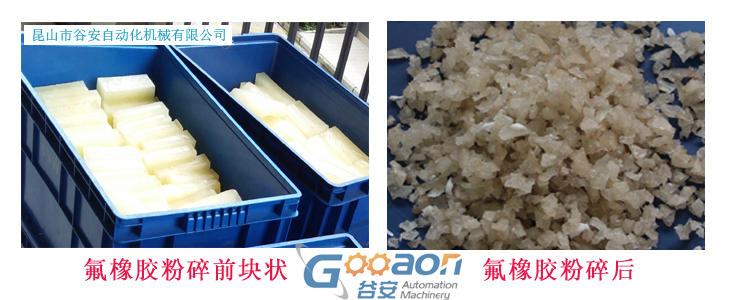

五、Rubber dicing and crushing picture display
