Film, stretch film, cast film pulverizer

Film Sheet Crusher | Stretch Film Crusher | Cast Film Crusher

1. Application of the product
Film pulverizer, stretch film pulverizer is suitable for the centralized pulverization of film pulverization, stretch film pulverization, sponge pulverization, woven bag pulverization, waste silk wig and other materials.

2. Product description
The film pulverizer and the wrap film pulverizer are made of imported high-quality tool steel and specially made knives, which are particularly durable. The knives are installed and designed to be telescopically adjusted. After being dull, they can be re-ground many times, and they can be used repeatedly with a long service life. Therefore, the film pulverizer is the first choice for the centralized pulverization of materials such as film pulverization, stretch film pulverization, sponge pulverization, woven bag pulverization, and waste silk wigs.

The film pulverizer and the stretch film pulverizer are fastened with high-strength (8.8 grade) steel screws, and the structure is solid and durable. The main body is made of high-quality structural materials, and the long-term use will not affect the mechanical properties of broken materials. The axis of the main body and the double end faces are also processed by high-precision coordinates in turn to ensure concentricity and verticality. Each component is set with a reference hole, and the surface is roughed and refined twice. High precision. Assemble heavy-duty bearings and set up a double-layer sealing device in the crushing chamber. The movable knife seat and the main shaft are assembled with high precision hydraulic pressure. The technology is advanced. The matching gap of the movable knife is less than 0.05MM, which prevents the broken powder from leaking into the bearing seat and aggravating the motor load. , to overcome the key failure factors of the crusher.

3. Features of the product:

1. The film pulverizer is suitable for recycling film and sheet materials, such as PE, PP film materials, woven bags, woven fabrics, etc.

2.The uniquely designed scissor-type knife holder structure of the film pulverizer for film material crushing is more conducive to improving work efficiency.

3.Optional suction fan and storage barrel can be used to form a film crushing and recycling system, which can improve work efficiency.

4、The front and rear parts of the pulverizer room are double-layered with sound insulation, and the middle is filled with sound insulation materials, so the noise is extremely low.

Gu'an film pulverizer, aiming at the characteristics of light weight and easy winding such as sponge, film, woven bag, waste silk wig, etc., Gu'an independently developed a knife shaft, the knives are arranged in a V shape, and the scissors cut and pulverize during the rotation process. . It is specially used for the crushing of thin and light materials such as films, packaging bags, packaging films, sponges, spray sponges, waste nylon yarns, fishing nets, waste plastic nets, etc. It adopts high-hardness blades with excellent cutting force, scissors-type crushing, and the surface of the screen mesh. Handling, reducing static electricity and other factors, making the cutting smoother and increasing the output.

The pulverizer is specially used for film, packaging bags and plastic bags, with high output, fast cutting, continuous work for a long time, no winding, fast cutting and high efficiency. It can also be used for thin products, defective products, nozzle materials and plates The crushing and recycling. One machine is multi-purpose.

4. Frequently Asked Questions:

Q: When the film shredder is shredding the film, will the fragments not go down?
Answer: Gu'an film pulverizer will not have this situation. Our cutter, cutting angle, screen and rotating speed are all designed according to the characteristics of the film, so that the pulverization is smooth, the material is cut quickly, and the pulverization efficiency is increased by 30%.
Q: How small can the film be shredded?

Answer: Depending on the thickness of the film, taking the film material with a thickness of 0.04mm as an example, the Guan pulverizer can pulverize it to a minimum of 4mm or less.
Q: Why is the shredder I am using now, ordinary plastic can be shredded, but film cannot be shredded?
Answer: Ordinary plastics are generally products or nozzle materials, which are relatively hard. During the rotation of the pulverizer tool, even if the cutting angle or the tool is not sharp enough, it can be broken only by the impact force. However, the film material cannot be crushed by the impact force alone. It must be cut with the correct cutting angle and a sharp tool to be crushed.

Q: My current shredder can't be used, can you recycle my old shredder, and I will buy a new one from you?
A: Sorry, Gu'an does not make second-hand equipment, and we do not recycle second-hand mobile phones. If you have used equipment to deal with, it is recommended that you find a professional used equipment dealer.
Q: Can your company refit my shredder to be able to shred thin films?
A: It can be changed, but we do not recommend you to change it in this way, for the following reasons:

1. The equipment produced by various manufacturers is different in size, resulting in uncommon spare parts. If it is customized, the delivery time will be long and the cost will be high;
2. The cutter arrangement, cutter material, cutting angle, rotation speed, and screen processing of the pulverizer for thin film are different from those of the ordinary pulverizer. If it is modified, the amount of engineering is large and the cost is high.
Q: What other kinds of materials can this film pulverizer pulverize?
A: This pulverizer can not only pulverize plastic films and plastic bags, but also special ones that cannot be pulverized by ordinary pulverizers: woven bags, waste silk, fishing nets, wigs, spray foam, foam products (such as yoga mats) And so can achieve a good crushing effect. At the same time, it can also crush some relatively thin defective products and nozzle materials.
Q: Is there any material that is not suitable for crushing in this film pulverizer?
A: Yes, this film pulverizer is not suitable for pulverizing thicker rubber blocks

Q: What are the advantages of Gu'an film pulverizer?
A: There are 4 major advantages:
1. As a special model, Gu'an film pulverizer has been produced as an independent product series in our pulverizer for 9 years;
2. The Gu'an film pulverizer adopts a flat knife or a V-shaped knife, and there is no dead angle for cutting, and the pulverization efficiency is increased by 30%;
3. The unique design of the central axis + bushing of the Gu'an film pulverizer has no welding points, easy to clean without hiding materials, and easy to change colors;
4. Gu'an thin-film pulverizer uses Gu'an's original alloy steel cutter, whose wear resistance is 3-5 times that of ordinary cutters

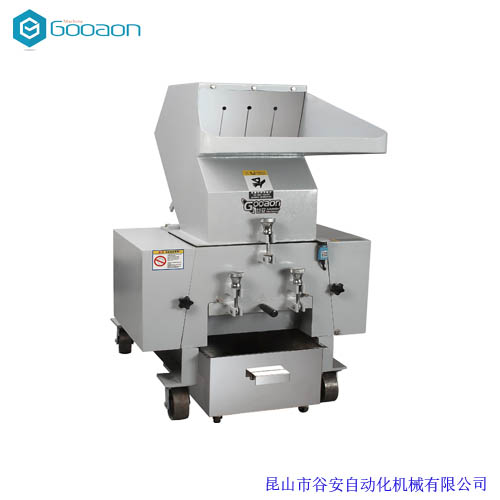

6. Picture display
